General chassis

Removing the seats

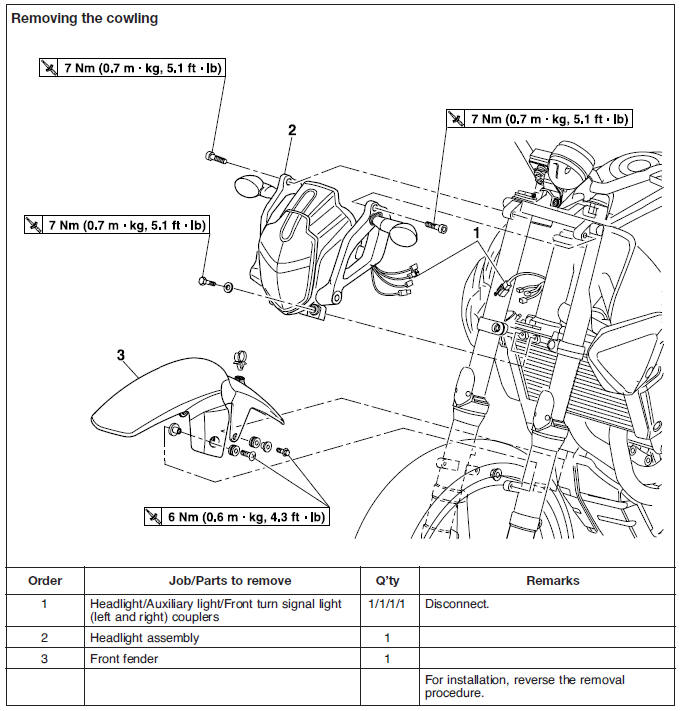

Removing the cowling

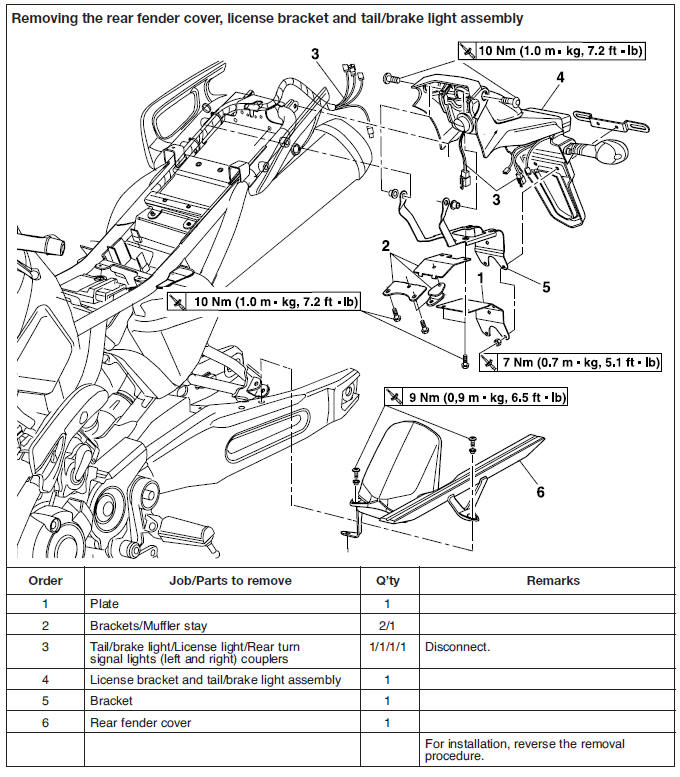

Removing the rear fender cover, license bracket And tail/brake light assembly

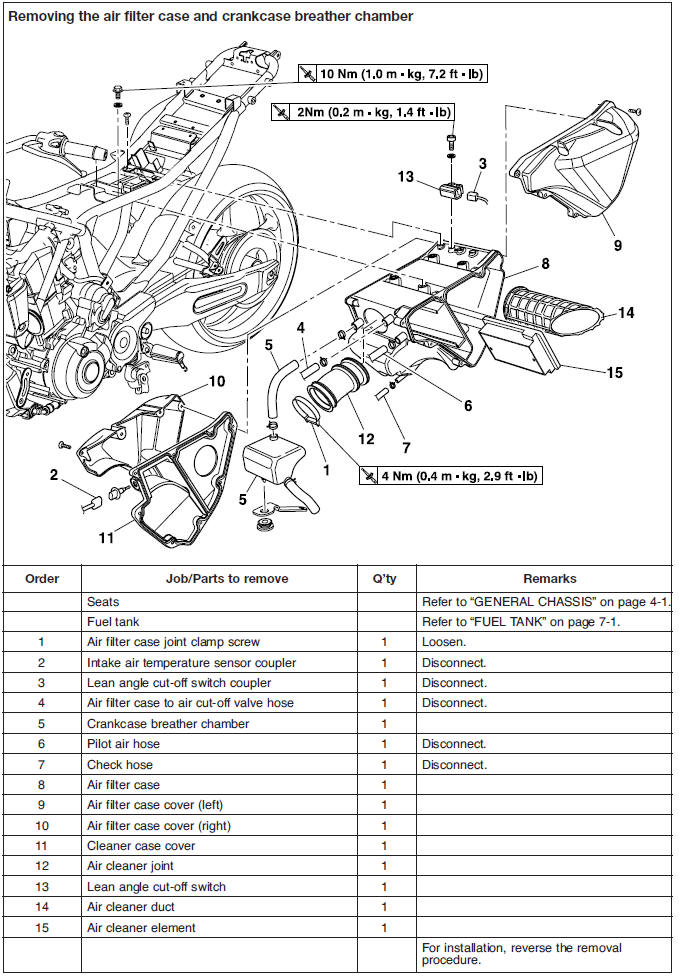

Removing the air filter case and crankcase Breather chamber

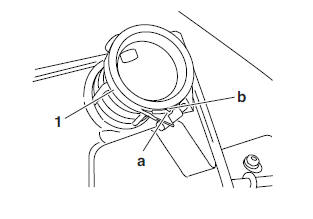

Installing the air filter case joint clamp

1. Install:

• Air filter case joint clamp "1"

NOTE:

To install the air filter case joint clamp, align slot "a" with the projection "b" on the air filter case.

• Front wheel
• Front brake
• Rear brake
• Front fork
• Steering head
• Swingarm
