Triumph Street Triple S - Service manual > Cylinder Head

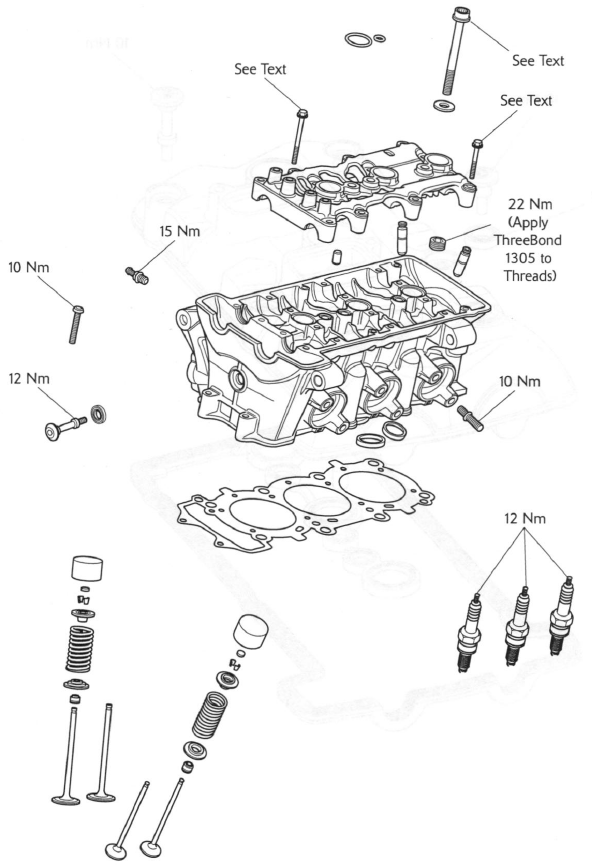

Exploded View - Cylinder Head and Valves

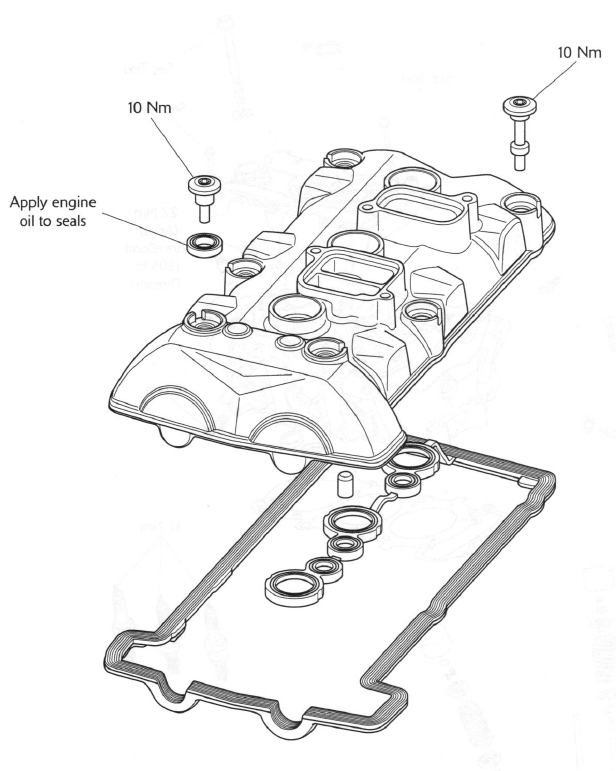

Exploded View - Camshaft Cover

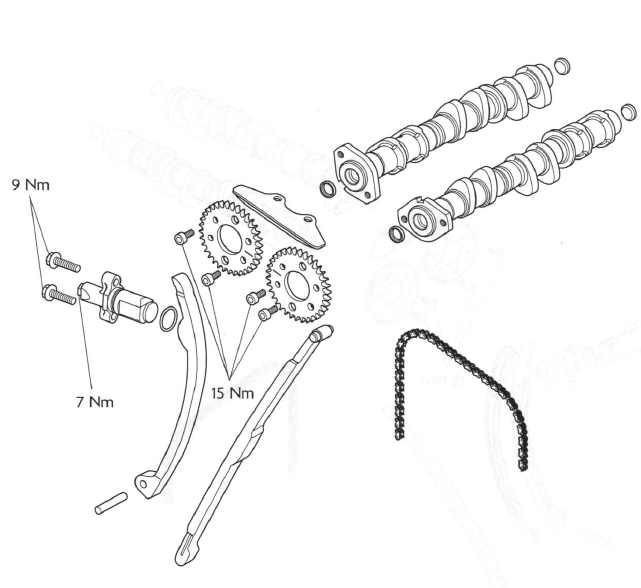

Exploded View - Camshaft and Camshaft Drive - Daytona 675 up to VIN 381274, Street Triple and Street Triple R all VINs
Exploded View - Camshaft and Camshaft Drive - Daytona 675 from VIN 381275
See also:
Triumph Street Triple S - Service manual > Service Tools and Garage Equipment
Special service tools have been developed to facilitate removal, dismantling and assembly of certain mechanical components in a practical manner without causing damage. Some operations in this Service Manual cannot be carried out without the aid of the relevant service tools. Where this is the case, the tools required will be described during the procedure.
Triumph Street Triple S - Service manual > Cylinder Head Description
The engine is fitted with an aluminium alloy cylinder head, which carries the camshafts, valves and spark plugs. The cylinder head is cast as a single entity and various components are permanently added after machining.
