Kawasaki Z400 - Service manual > Frame
Frame

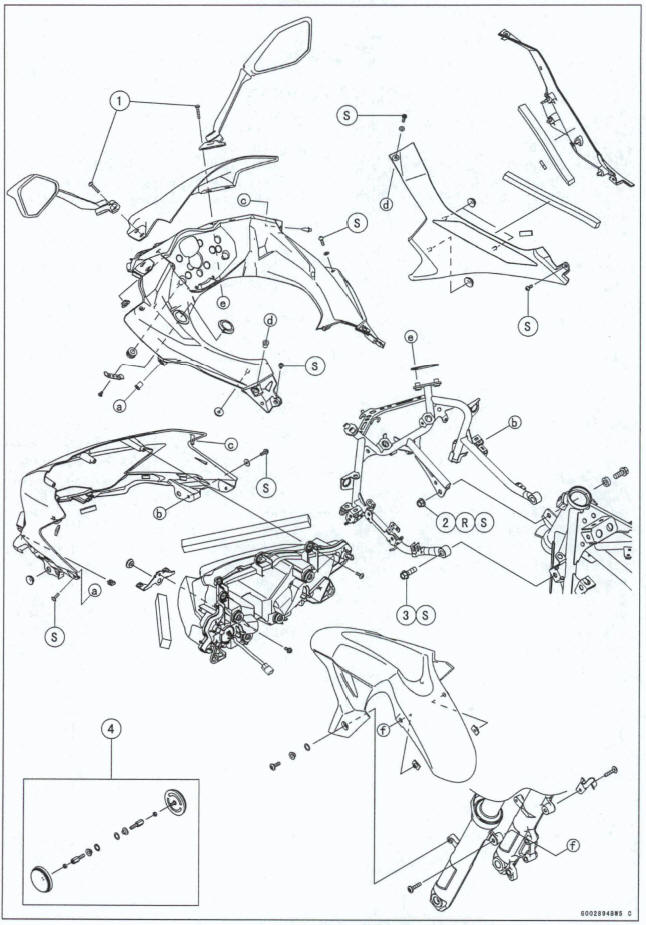

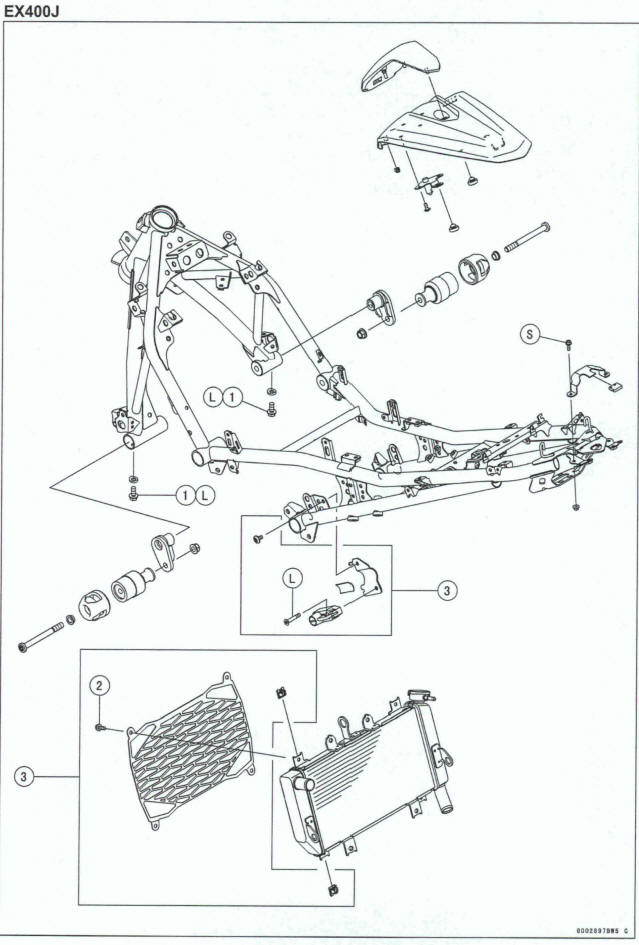

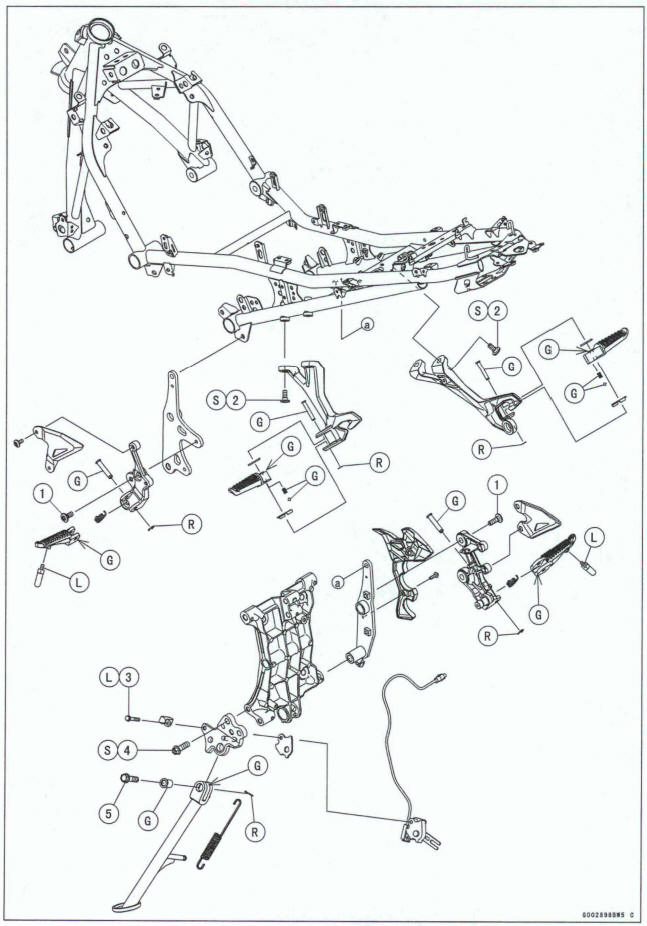

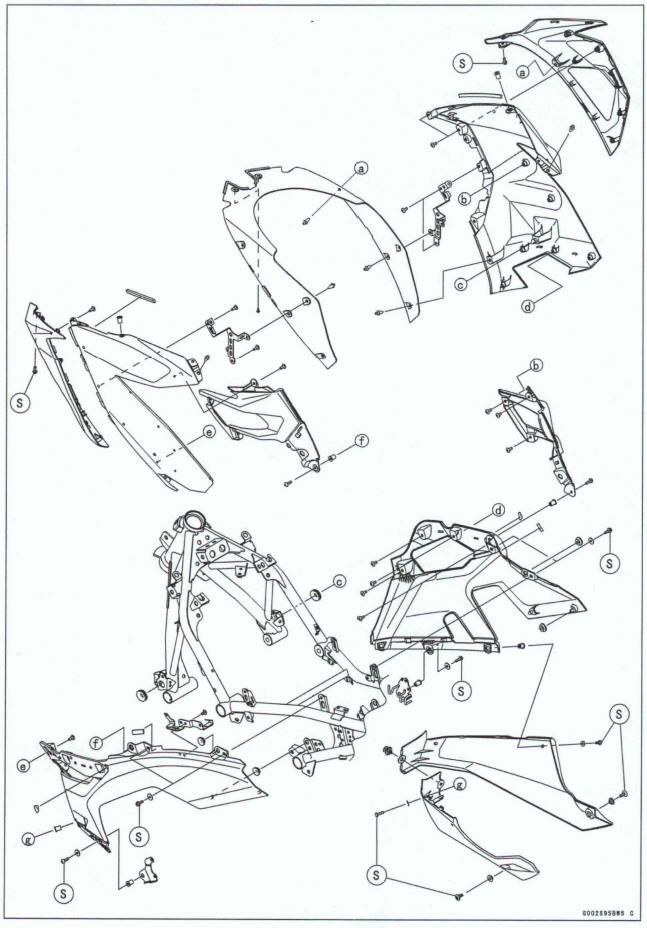

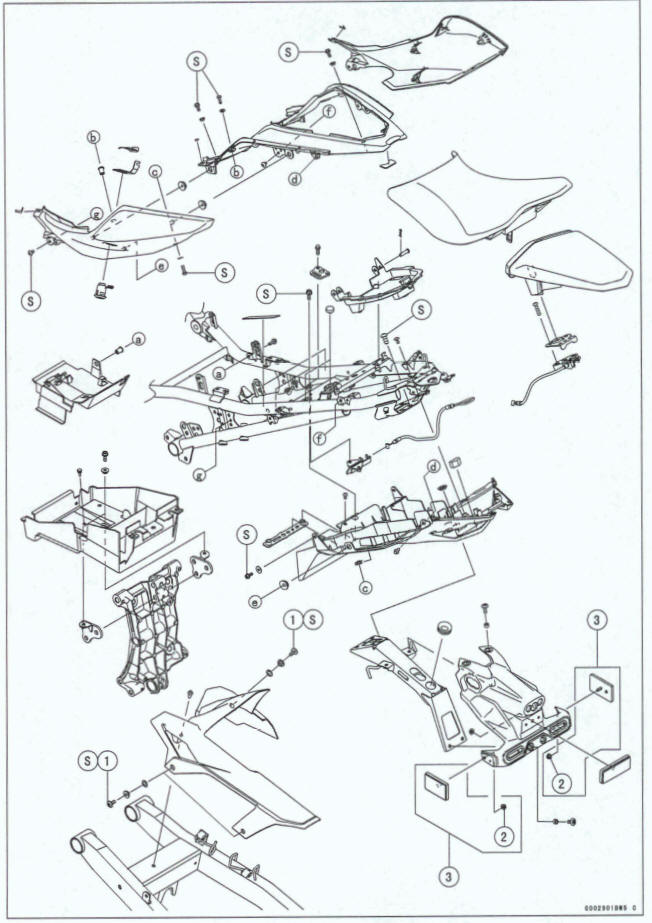

Exploded View
4. US, CA and CAL
R: Replacement Parts
S: Follow the specified tightening sequence.
S: Follow the specified tightening sequence
3. Equipped Models
S: Follow the specified tightening sequence.
G: Apply grease.
L: Apply a non- permanent locking agent.
R: Replacement Parts
S: Follow the specified tightening sequence
3. MY
L: Apply a non-permanent locking agent.
S: Follow the specified tightening sequence
