Kawasaki Z400 - Service manual > Suspension

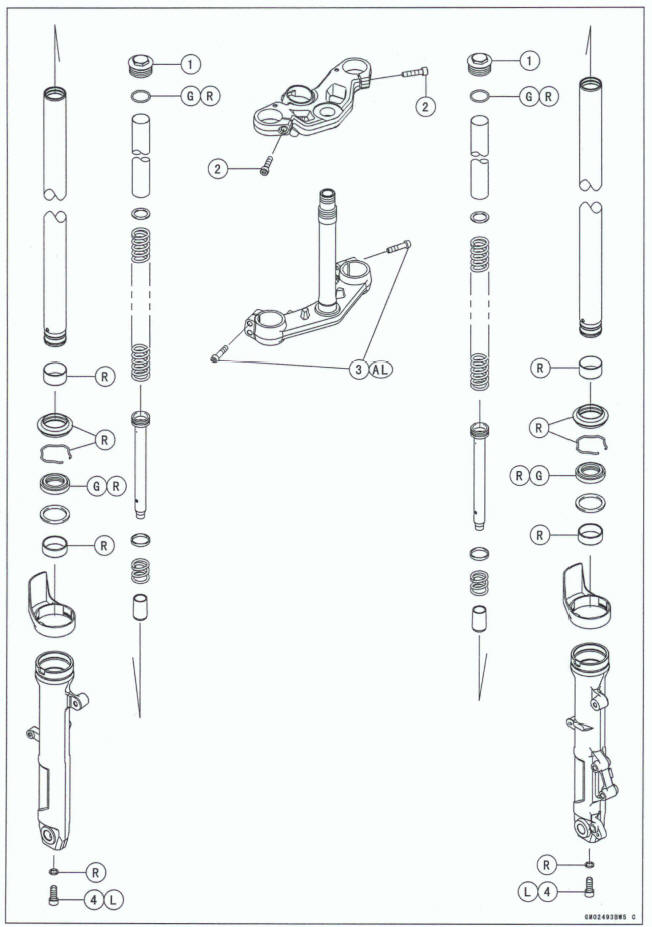

Exploded View
AL: lighten the two clamp bolts alternately two times to ensure tightening toque.
G: Apply grease.
L: Apply a non-permanent locking agent.
R: Replacement Parts
G: Apply grease.
R: Replacement Parts
S: Follow the specified tightening sequence

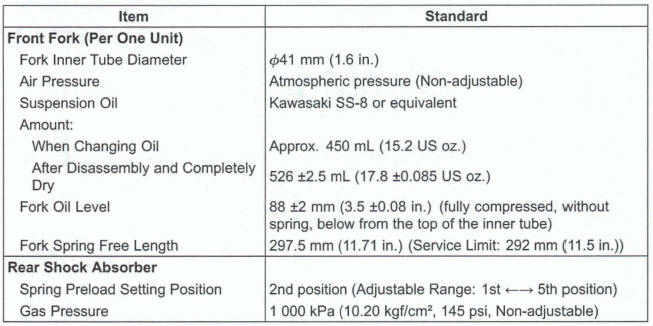

Specifications
Special Tools

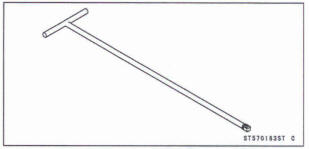

Fork Cylinder Holder Handle: 5t001-183

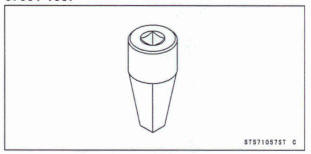

Fork Cylinder Holder Adapter 57001 -1 057

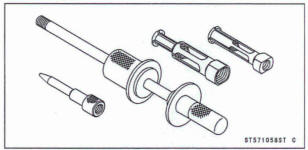

Oil Seal and Bearing Remover: 57001-1058

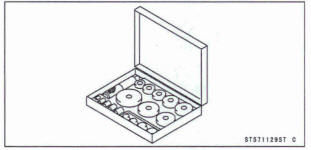

Bearing Driver Set: 57001-1129

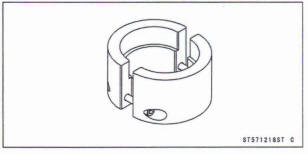

Fork Outer Tube Weight: 57001-1218

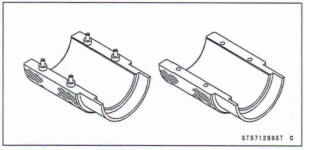

Fork Oil Seal Driver
41:
57001 -1 288

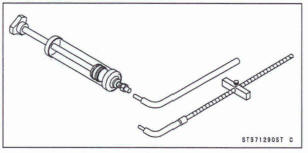

Fork Oil Level Gauge: 57001 -1290

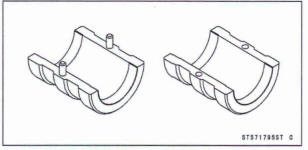

Fork Oil Seal Driver Weight
26
~
46: 51001 -1 795

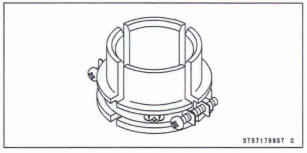

Fork Oil Seal Driver Attachment,
36 -
46: 57001 -1 798
